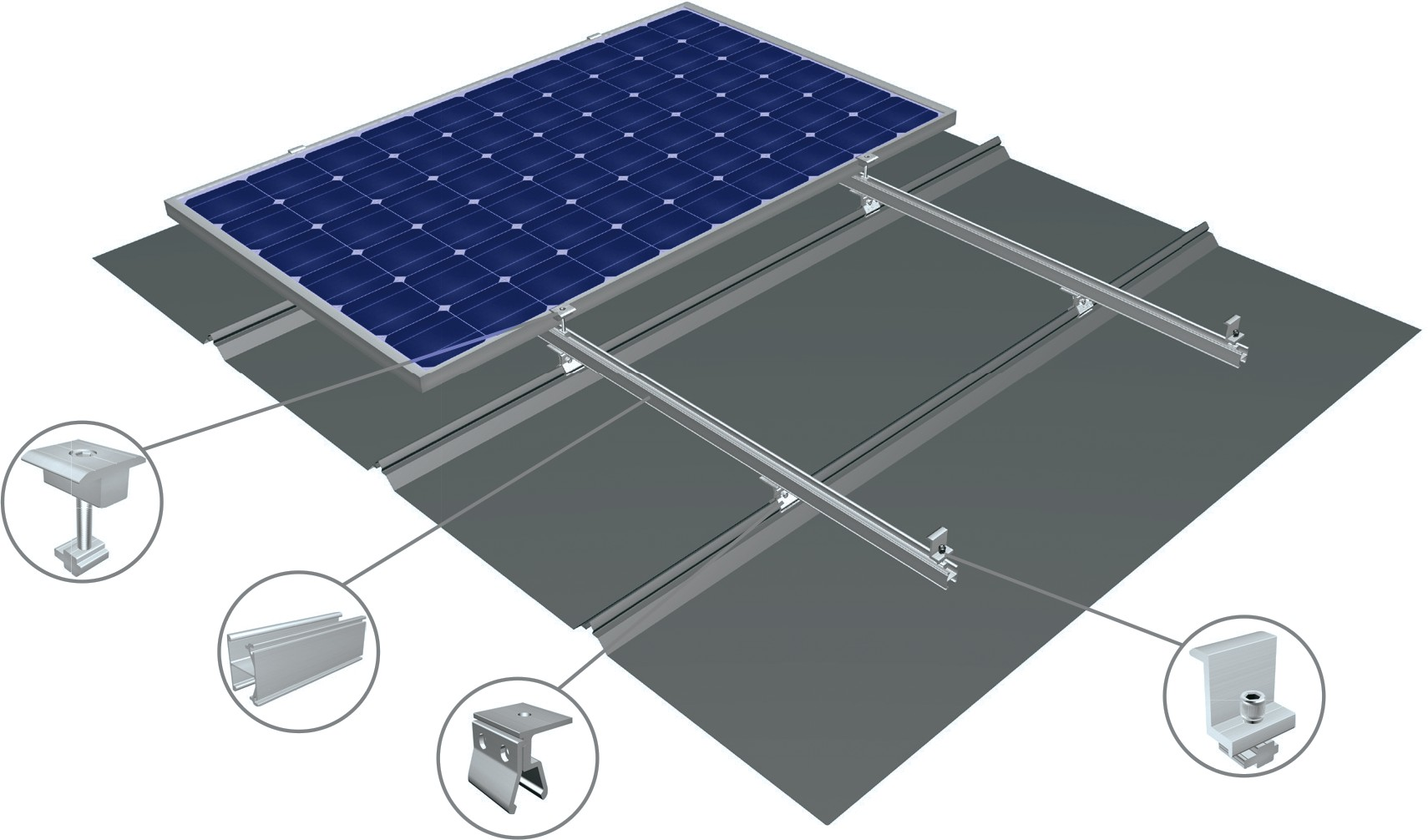

| System Name | Clip Lock Color Steel Roof Solar Project | Wind Load | 50 m/s |
| Installation Angle | 5° - 30° | Snow Load | 1.5 KN/m² |
| System Warranty | 5 Years |
| Component | Description | Product Image |
|---|---|---|
| End Clamp Set | Designed for edge fixing of PV modules, compatible with 30/35/40mm module frames. Equipped with M8 sliding nut, 304 stainless steel spring plate and hex socket bolt, featuring stable structure, easy installation and excellent wind load resistance. |  |
| Mid Clamp Set | Used for middle fixing between PV modules, with adjustable height. Compatible with framed and frameless modules, equipped with 304 stainless steel fasteners, anti-corrosion, durable and highly adaptable. |  |
| Rail | Made of AL6063-T5 aluminum alloy with anodized surface, featuring high strength, light weight, corrosion resistance and weather resistance. Custom length available, suitable for various color steel roof PV systems. |  |
| Rail Connector | Used for connecting multiple rail sections, ensuring overall flatness and structural strength of rails. Same material as rails, easy to install, firm connection, improving system stability. |  |
| Clip Lock Fixture | Special fixture for clip-lock color steel roofs, no drilling required, directly clamped on the roof ribs. No damage to roof waterproof structure, compatible with various clip-lock roof profiles, efficient installation. |  |
| Fixture Model | Description | Product Image |
|---|---|---|

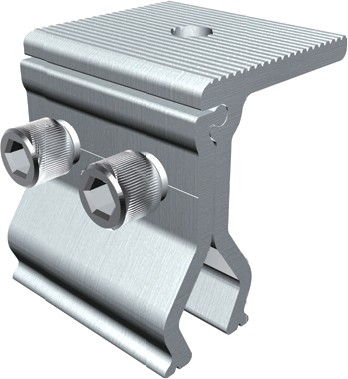

| ZYX-Clip Lock Fixture-1 | Standard clip lock fixture for common clip-lock color steel roofs. Stable connection, no drilling, and excellent corrosion resistance. |  |

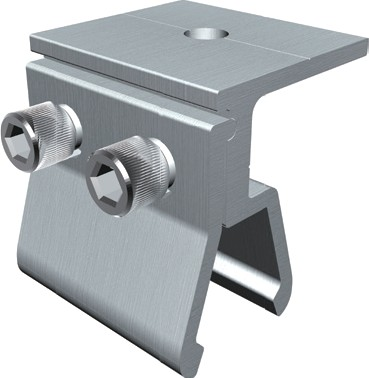

| ZYX-Clip Lock Fixture-2 | Designed for medium-height clip-lock roof ribs. Easy installation, high strength, and perfect fit. |  |

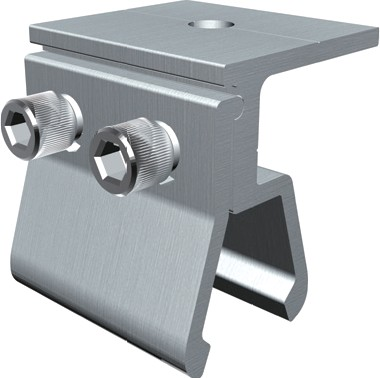

| ZYX-Clip Lock Fixture-3 | Specialized for 760/820 series clip-lock roofs. Precision machining ensures tight fitting with roof ribs. |  |

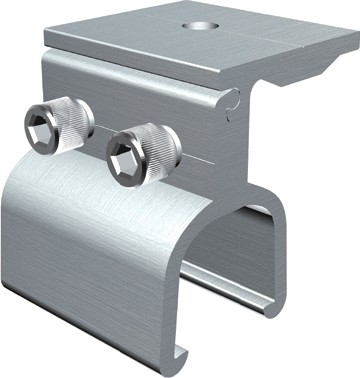

| ZYX-Clip Lock Fixture-4 | High-rise clip lock fixture for large-span roof projects. Provides stronger wind load resistance. |  |

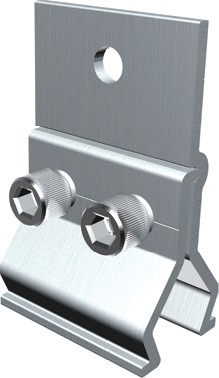

| ZYX-Clip Lock Fixture-5 | Custom-fit for narrow-base clip-lock roofs. Maximizes stability while saving installation space. |  |

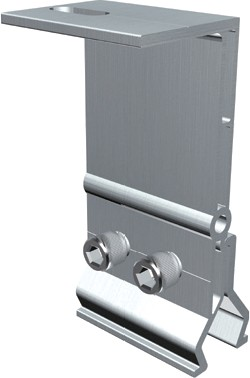

| ZYX-Clip Lock Fixture-6 | Economic version clip lock fixture. Cost-effective, durable, and suitable for general commercial projects. |  |

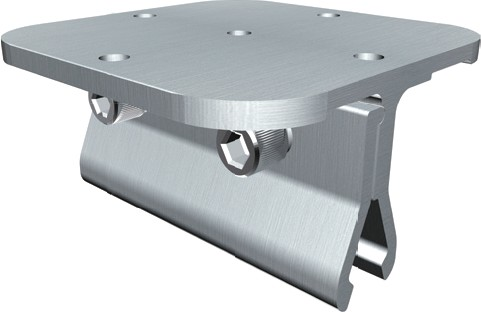

| ZYX-Multi-function Clip Lock Fixture | Universal fixture that fits multiple clip-lock roof profiles. Reduces the need for custom parts and improves project flexibility. |  |

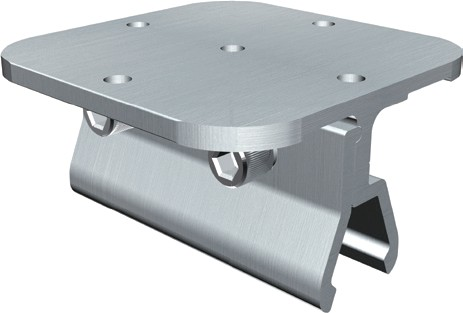

| ZYX-Clip Lock Fixture-7 | Heavy-duty clip lock fixture for extreme wind zones. Reinforced structure to withstand high wind speeds. |  |

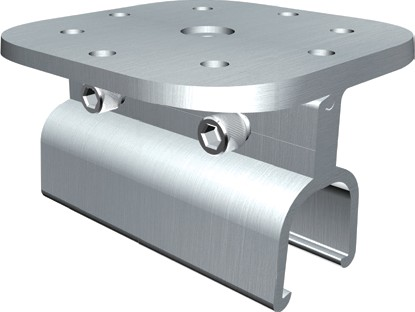

| ZYX-Clip Lock Fixture-8 | Special shape for irregular roof ribs. Custom design ensures perfect matching for complex roof conditions. |  |

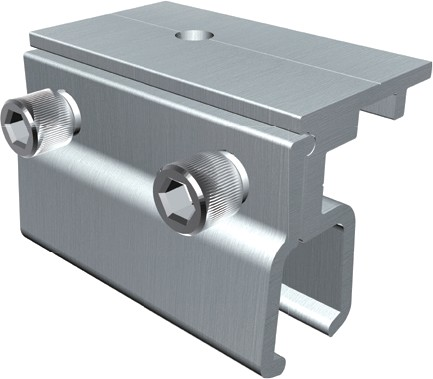

| ZYX-Clip Lock Fixture-9 | Enhanced corrosion-resistant clip lock fixture. Suitable for coastal and high-humidity environments. |  |
