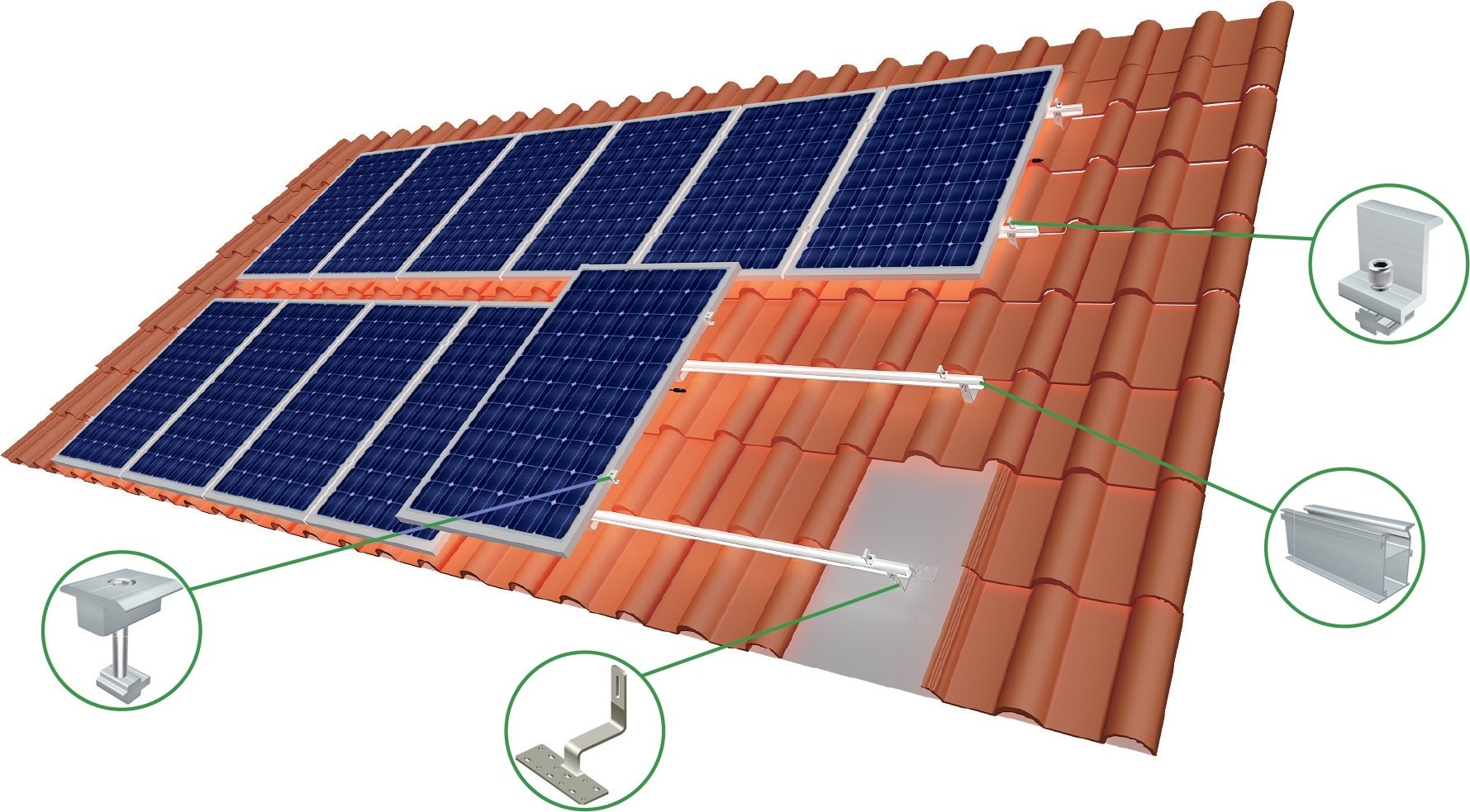

| System Name | Sloped Tile Roof Solar Project | Wind Load | 50 m/s |
| Installation Angle | 5° - 20° | Snow Load | 1.5 KN/m² |
| System Warranty | 5 Years |
| Component | Specifications & Materials | Product Image |
|---|---|---|
| End Clamp Set | • Fits panel thickness: 30mm / 35mm / 40mm • M8 Small Oxidized Sliding Nut • 304 Stainless Steel Spring Washer M8 • 304 Stainless Steel Hexagon Socket Bolt |
 |
| Mid Clamp Set | • Fixed height for adjacent panels • M8 Small Oxidized Sliding Nut • 304 Stainless Steel Spring Washer M8 • 304 Stainless Steel Hexagon Socket Bolt |
 |
| Hook Rail Connector | • Length: 150mm • Material: AL6063-T5 (Surface Anodized) • Splices rail sections securely |
 |
| Hook Rail | • Available lengths: 1200mm / 2400mm / 3600mm • Material: AL6063-T5 (Surface Anodized) • Pre-slotted for T-bolts |
 |
| Hook Model | Material & Compatibility | Product Image |
|---|---|---|
| ZYX Fixed Straight Hook | 304 Stainless Steel | Wooden beam + concrete tile surface |  |
| ZYX Side Standing Hook | 304 Stainless Steel | Wooden beam + concrete tile surface |  |
| ZYX Flat Hook | 304 Stainless Steel | Wooden beam + concrete tile surface |  |
| ZYX USA Standard Standing Hook | 304 Stainless Steel | Wooden beam + concrete tile surface (US market) |  |
| ZYX USA Standard Flat Hook | 304 Stainless Steel | Wooden beam + concrete tile surface (US market) |  |
| ZYX Flat Tile Hook | 304 Stainless Steel | Wooden beam + concrete tile surface |  |
| ZYX Flat Tile Hook (Gen 2) | 304 Stainless Steel | Optimized for flat tiles, wooden beam + concrete |  |
| ZYX Standing Adjustable Hook | 304 Stainless Steel | Adjustable height, wooden beam + concrete tile |  |
| ZYX Adjustable Side Standing Hook | 304 Stainless Steel | Side standing + adjustable, wooden beam + concrete |  |

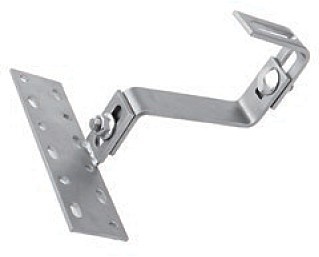

| ZYX Double Adjustable Flat Hook | 304 Stainless Steel | Dual adjustment, wooden beam + concrete tile |  |

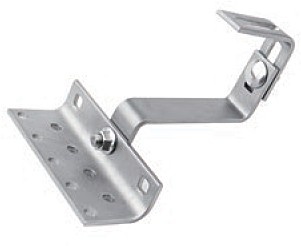

| ZYX EU/USA Special Adjustable Flat Hook | 304 Stainless Steel | Designed for European & American profiles, wooden beam + concrete |  |

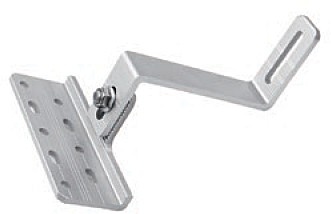

| ZYX Aluminum Adjustable Hook | 304 Stainless Steel | Lightweight design, wooden beam + concrete tile |  |
| ZYX USA Standard Adjustable Standing Hook | 304 Stainless Steel | Adjustable, meets US standards, wooden beam + concrete |  |
| ZYX Adjustable Flat Hook | 304 Stainless Steel | Universal flat adjustable, wooden beam + concrete tile |  |
| ZYX Standing Adjustable Side Base Plate Hook | 304 Stainless Steel | Side base plate with standing adjustment, wooden beam + concrete |  |
| ZYX Adjustable Side Standing Side Base Plate Hook | 304 Stainless Steel | Side standing + side base plate adjustable, wooden beam + concrete |  |
| ZYX Adjustable Side Base Plate Flat Hook | 304 Stainless Steel | Flat hook with side base plate adjustment, wooden beam + concrete |  |
| ZYX Adjustable Flat Hook (Gen 2) | 304 Stainless Steel | Enhanced adjustable flat version, wooden beam + concrete tile |  |
